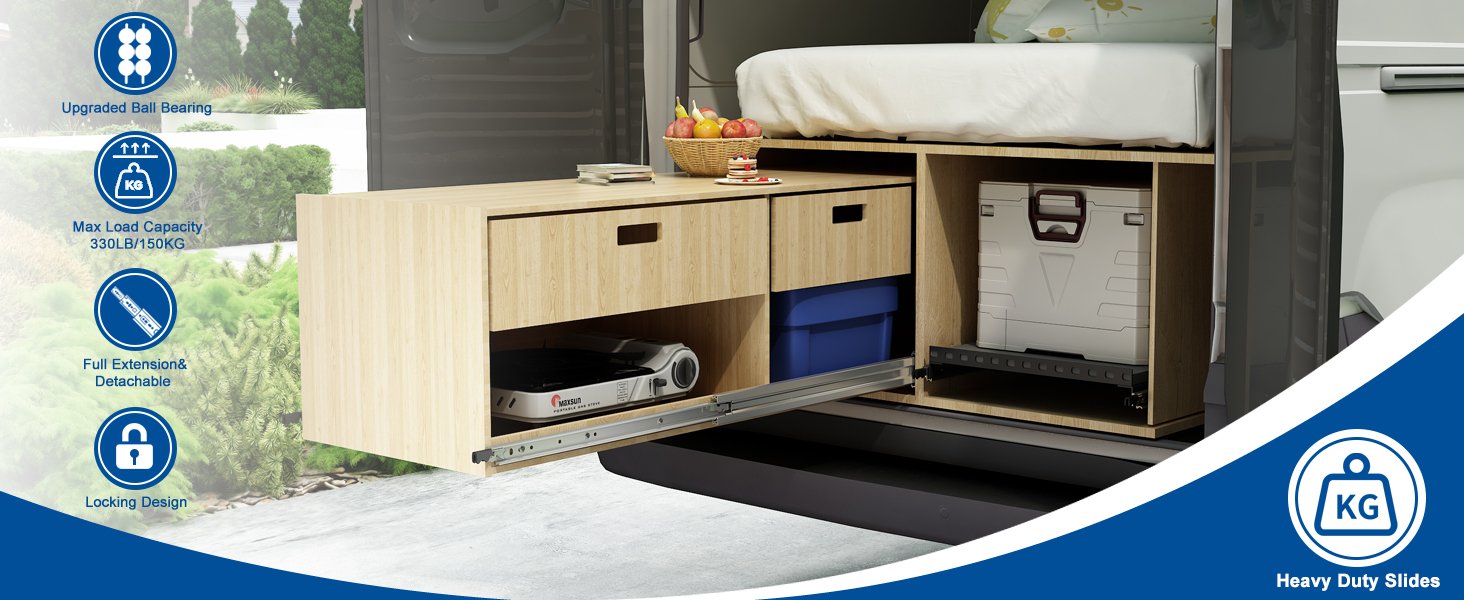

VADANIA #XD76 Ultra Heavy-Duty Locking Drawer Slides
Unique Detachable Design – This 76mm wide large lockable slide features an industry-first detachable third guide rail. Simply hold the locking button for easy removal.

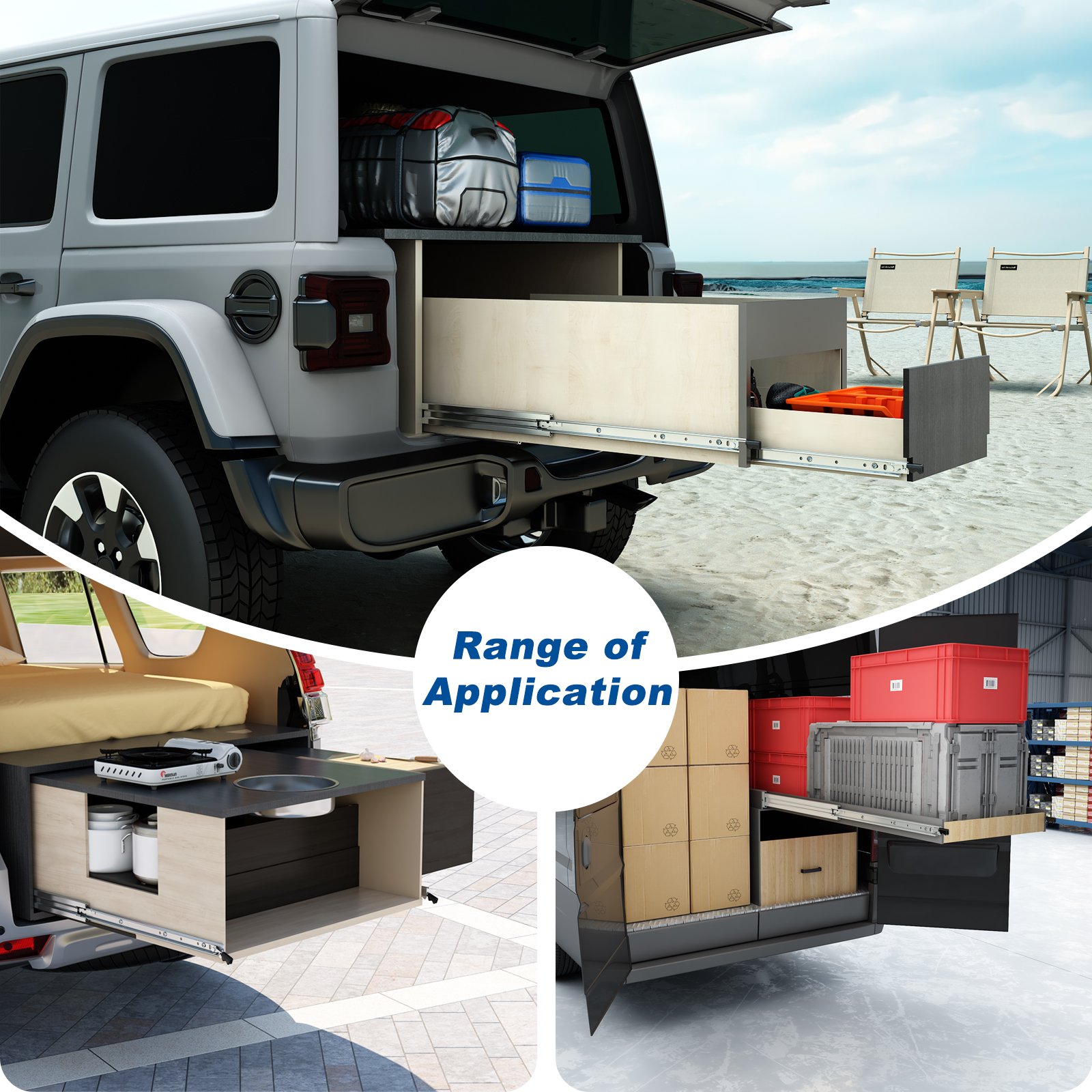

Built for the Toughest Environments
Product Showcase & Installation
Real Product Showcase
3D Installation Guide
Core Features at a Glance

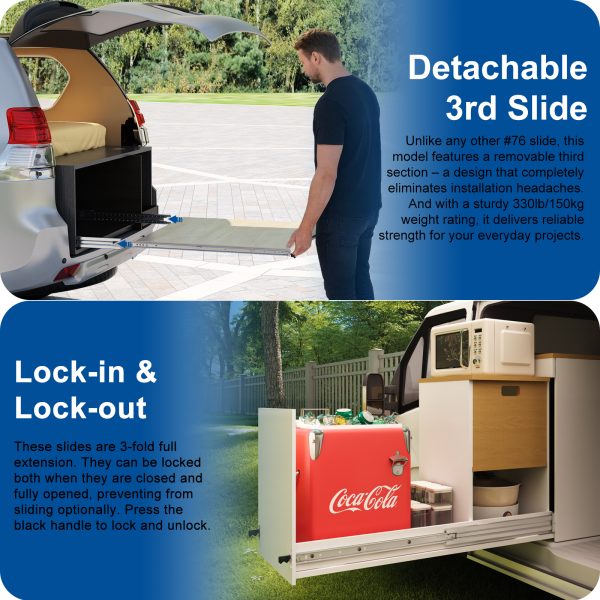

Separable Design
Keep pressing the black button and pulling the drawer runners, you can separate the first fold of it. That can be easier to install and use.
Dual-Row Ball Bearing
The strong ball bearing can keep the drawer sliding gently and smoothly even though carrying heavy items.
Heavy Duty Load Weight

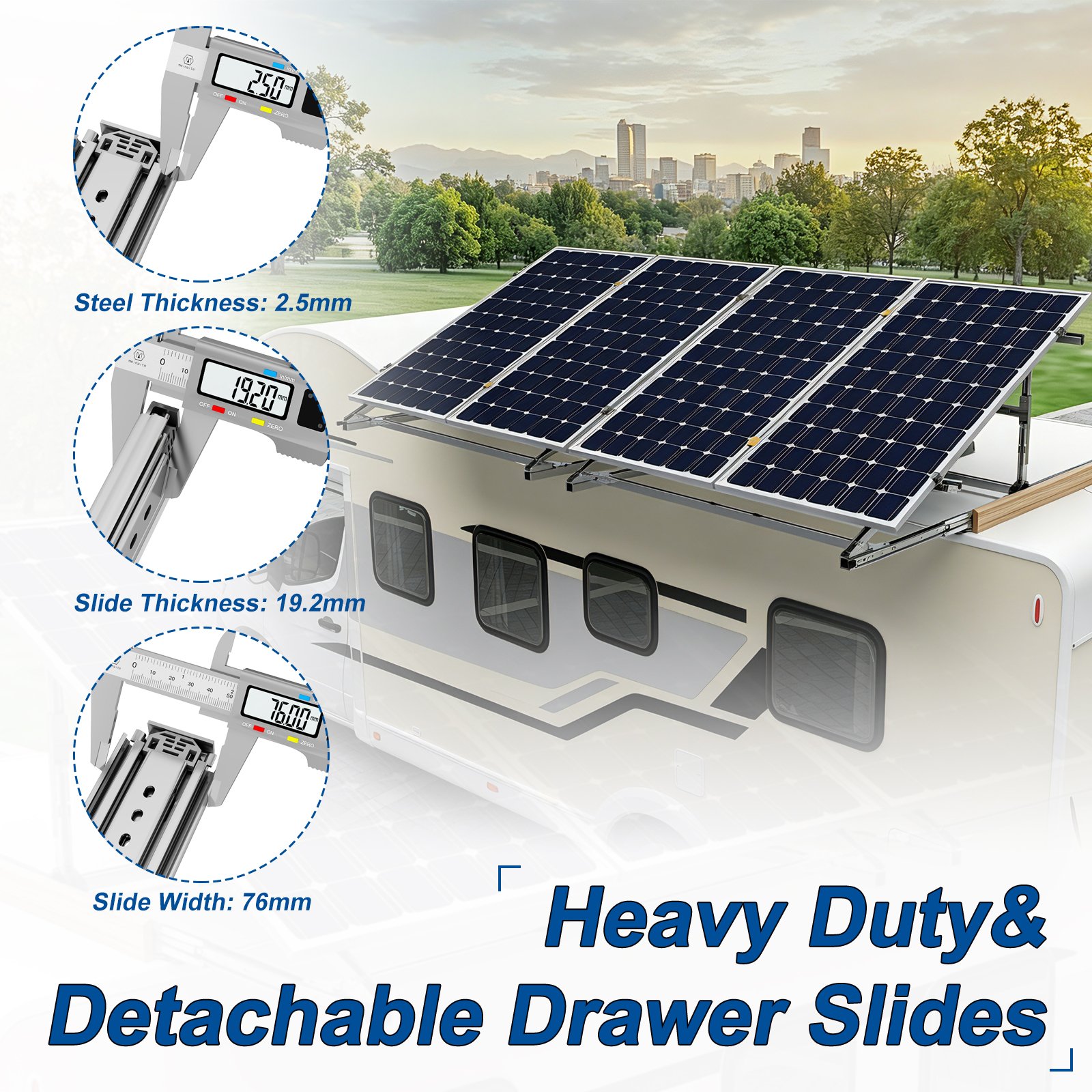

Made of thickened steel, #XD76 is 2.5mm in thickness and 76mm in width. Correspondingly, its maximum load capacity is 150kg/330lb.

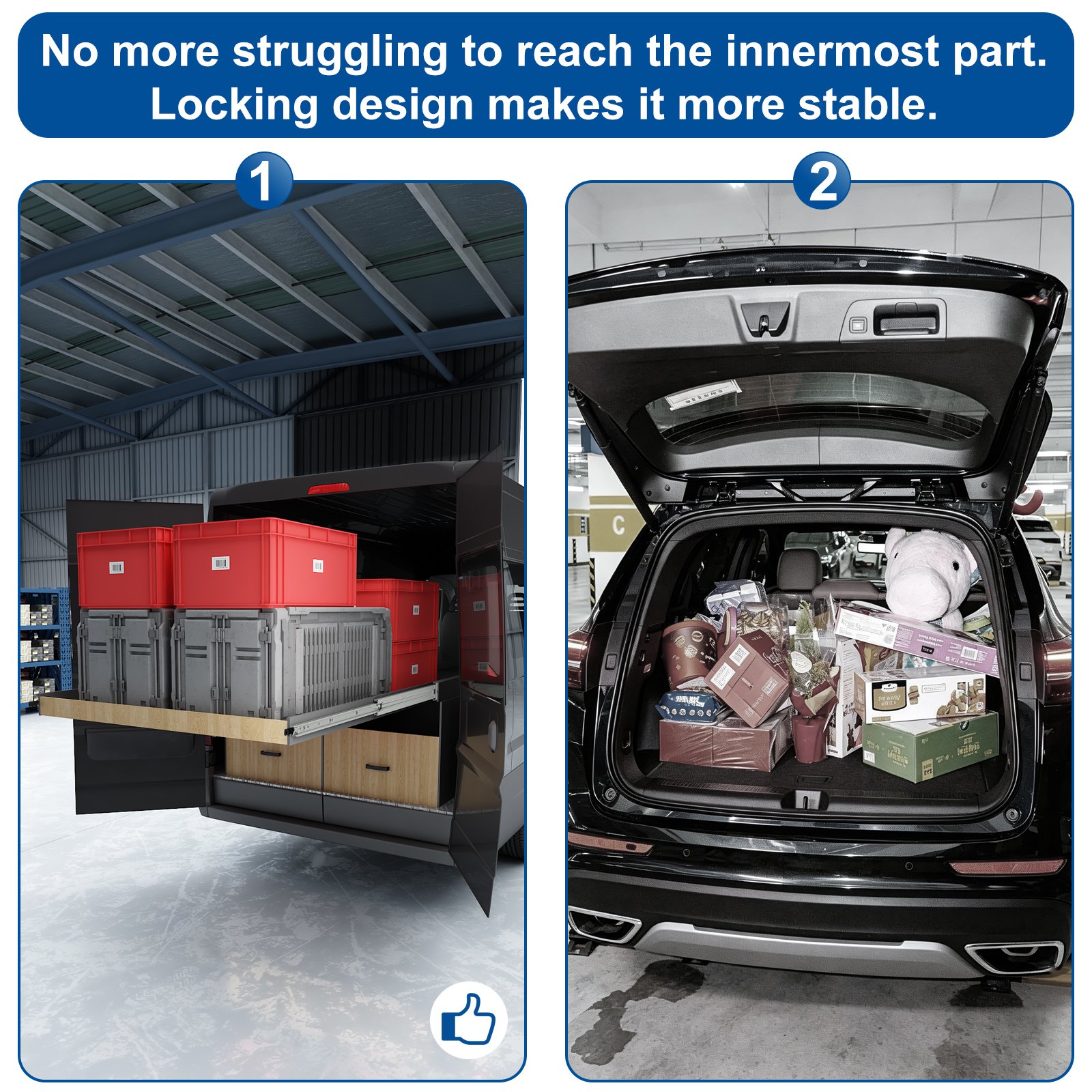

Locking Design
It will lock when full extension or closed which can keep your drawers stable and safe.
Technical Specifications
(Click image to enlarge)
| Material | High-Density Cold-Rolled Steel |
| Mounting Type | Side Mount |
| Max Load Capacity | 330 lbs / 150 kg |
| Slide Style | 3-Fold Full Extension, Locking, Section 3 is detachable |
| Slide Width | 3″ / 76mm |
| Steel Thickness | 0.1″ / 2.5mm (All members) |

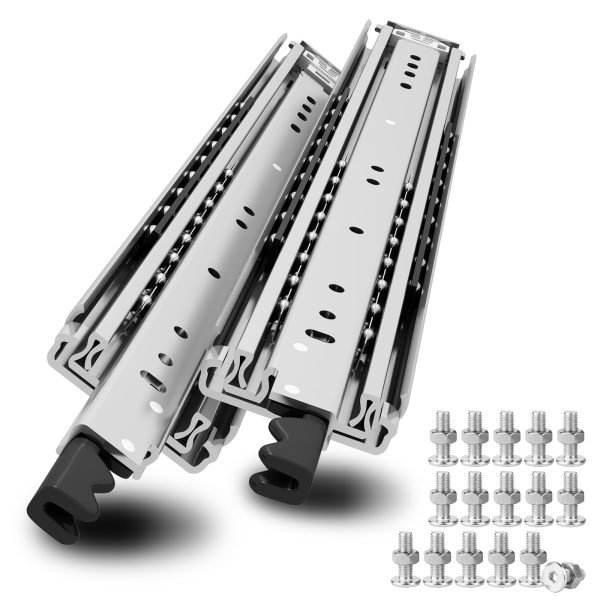

| Package Includes | 1 Pair (Screws are included) |
Selection & Installation Guide

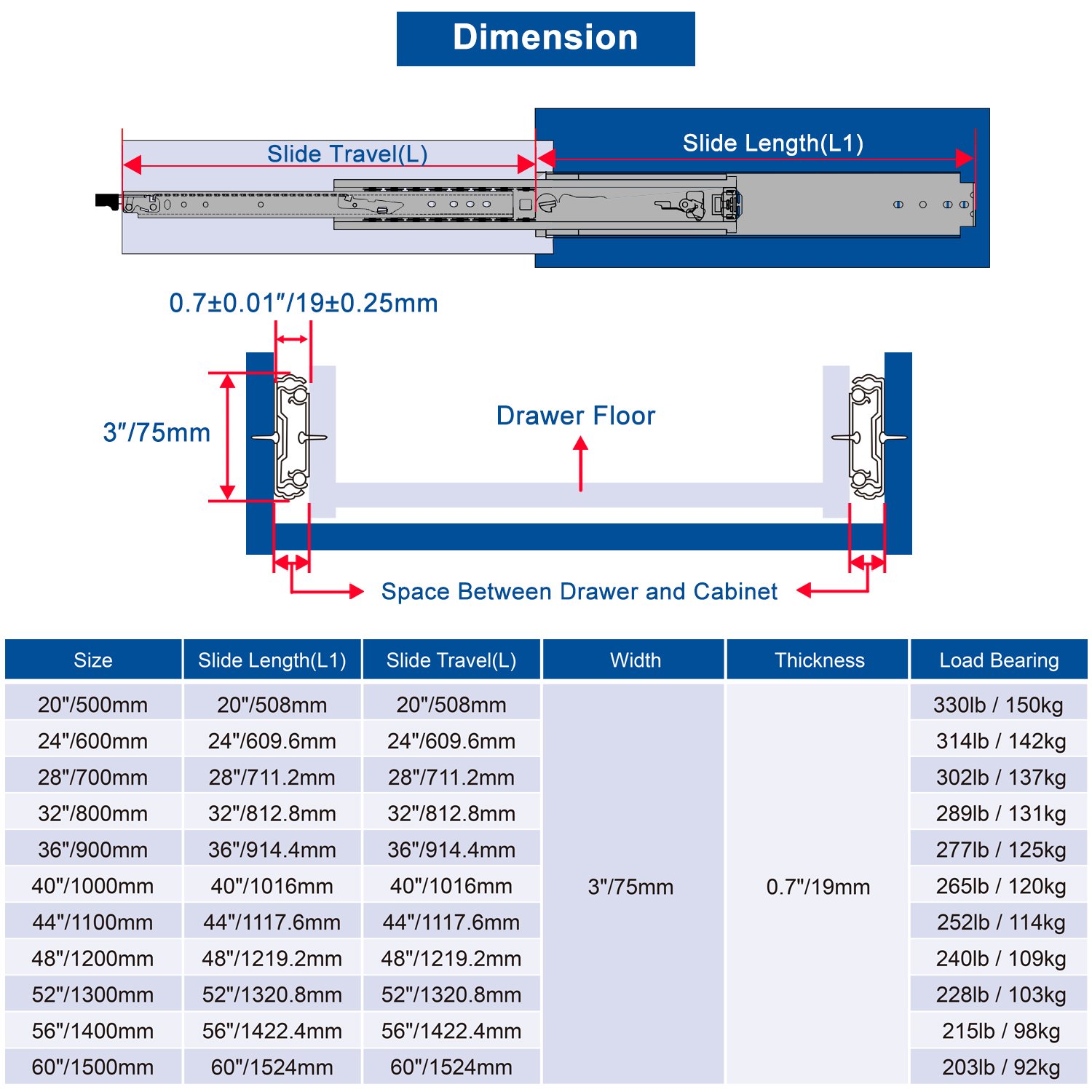

How to Choose the Correct Size
Measure the depth of your drawer box. For example, if the depth is 13″, choose the 12″ slides. A deviation of 0.7″ to 1″ (20-30mm) is suitable.
Installation Clearance
Ensure the space between the drawer and cabinet wall is 0.76″ (19.3mm) on each side for proper installation.
Easy Installation
Installation is straightforward. For detailed PDF instructions, please click here to check manual and video.
